+++++++++++++++++++++++++++See results from SDS PAGE in 20 minutes++++++++++++++++++++++++++++++++++++
|
ERICATM Electrophoresis/ PANTERATM Precast Gels
Better results in
half the time
- See
results from SDS PAGE in 20 minutes
- Obtain unparalleled resolution and band sharpness
- Get exceptional consistency and reproducible migration
from gel-to-gel.
- Use a multi-channel pipetteman
for rapid loading
ERICATM
Electrophoresis System with PANTERATM Precast
Acrylamide Gels give you
maximum resolution in a minimum amount of time. This system is excellently
suited for highly resolved and reproducible separation of proteins, peptides,
and nucleic acids.

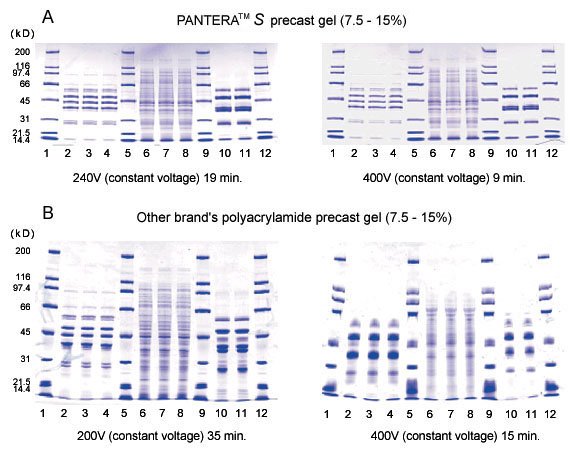

High-speed separation
not only provides valuable time savings, but also minimizes dispersion due to
diffusion and thermal convection and prevents induced lane distortion
(Experimental Medicine, Vol. 20, No. 13, Sep. 2002). By incorporating a gel chamber design
that enables the lower buffer to cool the gel cassette and using glass plates
for the pre-made PANTERA gels, these gels can be run at exceptionally high
voltage without overheating. This minimizes diffusion, prevents degradation
of the gel matrix by heating, and maintains current flow conditions that
yield exceptionally high resolution. Thus, you obtain consistently straight
sample migration with sharper bands in half the time. For high-performance
electrophoresis that provides maximum resolution in a minimum amount of time,
look no further!
Gel-to-gel
reproducibility
The exceptional
consistency, tight bands, and reproducible migration distances make this
system especially reproducible. In addition to facilitating interpretation of
the results, this feature makes the ERICATM System particularly
suitable for imaging applications since bands and spots (from 2-D gels)
appear in the same location from gel-to-gel.
Photo: Courtesy of Experimental Medicine, Vol. 20, No. 13, Sep.
2002
|
Gel System type: Erica
|
ERICATM MP Electrophoresis Systems
- Eliminates electrophoresis artifacts such as smiling and
ghost bands
- Produces sharper bands with unparalled
migration times
- Uses less sample and provides higher sensitivity
ERICATM MP Electrophoresis Systems are designed and
optimized to deliver the reproducibility, resolution, and speed needed to
generate exceptional quality results.
Consistent temperature produces better results
ERICATM MP Electrophoresis Systems are configured to
keep the temperature of the gel cool and constant, even at very high power
settings. The ERICATM MP design isolates the upper buffer chamber
to prevent it from coming in contact with the gels. Further, by immersing the
gels in the lower buffer chamber, both sides of both gels are in contact with
the buffers. This unique design helps ensure a low even temperature across
the gel minimizing migration effects such as smiling or band scatter, and,
when used with Pantera gels that have glass plates,
exceptionally high voltages can be used for electrophoresis. With the ERICA
System, you obtain consistently straight sample migration with sharper
bands in half the time. For high-performance.
|
Uniform Lower Buffer
Cooling
|
Conventional System
|
|
|
|
When compared with a
conventional system, ERICATM unique design ensures a consistent
and even gel temperature during electrophoresis, which minimizes artifacts
and maximizes resolution.
Faster migration, sharper bands
The shorter migration
distance used with this system result not only in tremendous time savings but
also minimize the dispersion of bands from diffusion and thermal convection.
More sensitivity, less sample
The high resolution
combined with short run times produces exceptionally sharp bands, which
translates into exceptional sensitivity. For similar sensitivity to standard
electrophoresis systems, you typically only need to load 50 - 60% of the
sample amount.
User-Friendly Apparatus
The ERICA System has
been designed to rapidly and easy assemble and disassemble. In addition, we
also added other user-friendly features. For example, for labs running a lot
of samples, the ERICA System is provided with lids in 4 different colors -
making it easy for you to differentiate which samples are on which apparatus.
|
Specification:
|
ERICATM MP Systems
Specifications
There are three different sizes of the ERICATM
MP System available: mini gel format, high sensitivity format, and
high-throughput format:
ERICATM SMP Electrophoresis
System
- High resolution SDS-PAGE in 20 minutes
In addition to providing you with results faster than any other
system, the short migration distances (50 mm) and ability to run high power
settings (300V) yield a tremendous reduction in analysis time and band
dispersion. For SDS-PAGE analysis, you can go from loading to staining in
less than 20 minutes with the ERICATM SMP Electrophoresis System.
ERICATM SMP Electrophoresis cell
Cat. No. BDEP-101
|
 Overall Size:
|
143
x 111 x 74mm (W x H x L)
|
|
Gel
plate capacity:
|
2
glass plates
|
|
Cooling
System:
|
Uniform
Lower Buffer Cooling System
|
|
Buffer
Tank Volume:
|
350
ml
|
|
Applicable
Gel:
|
PANTERA
S mini Gel
|
ERICATM WMP Electrophoresis System
- Multiple samples
per gel for higher throughput
Get the benefits of exceptionally fast electrophoresis and razor
sharp bands as the ERICATM SMP System, plus the convenience of loading extra samples. The
ERICATM WMP System
provides you with a width of 140 mm that enables you to load more samples for
fewer runs. Compatible with standard multichannel
pipettes enables you to load your samples rapidly and easily load. Gel run
times of 30-40 minutes are unparalleled for gels of this size.
ERICATM WMP electrophoresis cell
Cat. No. BDEP-201
|
Overall Size:
|
195
x 145 x 76mm (W x H x L)
|
|
Gel
plate capacity:
|
2
glass plates
|
|
Cooling
System:
|
Uniform
Lower Buffer Cooling System
|
|
Buffer
Tank Volume:
|
900
ml
|
|
Applicable
Gel:
|
PANTERATM W Compact Gel
|
ERICATM LMP Electrophoresis
System
- Extended migration distances
for high sensitivity
ERICATM LMP System provides suextended
migration distances to ensure maximal results for closely migrating species.
For researchers who require higher sensitivity to visualize subtle
distinctions in samples with very close molecular weights of migration
deltas, the ERICATM LMP System retains all the optimized design features of the ERICATM
SMP and LMP Systems to ensure exceptional
reproducibility and razor sharp resolution. Run times for this system are
typically less than an hour.
ERICATM LMP Electrophoresis cell
Cat. No. BDEP-301
|
Overall Size:
|
195
x 207 x 86mm (W x H x L)
|
|
Gel
plate capacity:
|
2
glass plates
|
|
Cooling
System:
|
Uniform
Lower Buffer Cooling System
|
|
Buffer
Tank Volume:
|
1400
ml
|
|
Applicable
Gel:
|
PANTERA
L Gel
|
Note: ERICATM MP electrophoresis system is designed to cast
PANTERATM polyacrylamide precast
gels. Our Kyoca Power supply, designed specifically
for higher voltage use, is highly recommended for ERICATM MP systems. This apparatus is for research
purposes only.
|
Precast Gels:
Uniquely
Optimized Precast Gels
Glass plates ensure highest resolution and the fastest
migration:
- Save time and get more consistent results with
pre-cast gels
- Standard Tris-HCL
chemistry ensures optimal resolution for any size molecules
- Gradient gels maintain rectangular shape after
fixing to facilitate analysis
- Glass plates provide the fastest separation at
the highest resolution
- Rapidly load gels using a multi-channel pipetteman
Specially developed
using a unique and optimized polymerization methods, PANTERATM Precast Gels provide razor-sharp resolution, better
western-blot transfer efficiency, and exceptional reproducibility. Every gel
size has a wide variety of comb formats compatible with multichannel
pipettes and extensive selections of gel types, concentrations, and
fractionation ranges.
PANTERA Gels are cast in
high-quality glass plates. In addition to ensuring optimal migration and
resolution since acrylamide adhere more tightly to
glass than to plastic, the plates enable PANTERA gels to be run with
exceptional speed in ERICA chambers. The higher conductivity of glass combined
with the design of the ERICA
chambers allows the gels to be run at exceptionally high current while
maintaining resolution and separation.
Saves
time and money:
Instead of spending 2-3
hours preparing the reagents and casting a poly-acryamide
gel in-house, you simply open the pre-cast PANTERA Gel, load it in the ERICA
Chamber, add pre-made buffer, and run the gel. In addition to the convenience
and time savings, you have the assurance of knowing the gel will get optimal
results from a quality-controlled product. It is estimated that about 30% of
hand-made gels do not provide satisfactory results. Get it right the first time
with PANTERA Pre-Cast Gels.
Wide
variety of gels for optimal separation:
PANTERA
Gels utilize standard Tris-HCL chemistry which
provides the widest range of separation over a wide range of gel percentages.
Thus, with PANTERA gels you have the option of selecting from a wide range of
different percentage acrylamide gels - each of which
separate different ranges of molecules depending on their size. With other gel
chemistries the separation range is typically very narrow, and so, you do not
provide the flexibility of PANTERA Gels. Bionexus offers several types of
PANTERATM Precast
Gels for different applications - each available with different percentages of polyacrylamide. You can easily select the appropriate gel
for rapid and accurate sample analysis for applications as diverse as protein
separation, peptide analysis, nucleic acid preparation, etc.

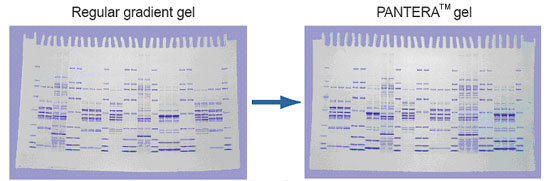

Gradient
gels maintain rectangular shape :
Unlike standard gradient
gels, PANTERA gradient gels maintain their rectangular shape after fixation.
Typically, during fixation, the low percentage acrylamide
regions of the gel at the top contract more than the high percentage regions at
the bottom. This gives rise to the typical trapezoid shape. However, PANTERA
Gels have been formulated to prevent this distortion, which makes analysis of
migration patter much easier.
Exceptional
reproducibility facilitates image analysis
The high reproducibility
provides improved gel-to-gel band and spot matching accuracy for 1-D and 2-D
imaging. This feature minimizes adjusting and resetting parameters for gel
comparisons and automated identification.
Customizable
gels
If you cannot find a gel
that meets your needs from our selection, or have a specialized application
that requires unique chemistry, Bionexus can supply you with custom-made
gels. Please contact us for more information regarding our custom gel
service.
Protein separation gel
concentration: 5-20%
|
PANTERATM Gel Specifications
PANTERATM S Gels
Cat. No. - link to pdf file
|
Cassette Size:
|
110
x 65x 4.6 mm (W x H xL)
|
|
Gel
Size:
|
90
x 45 x 1mm (W x H xL)
|
|
Number
of wells
|
9*,
12,18*, 20, 2-D
|
*Compatible with multichannel pipettemen
PANTERATM W Gels
Cat. No. - link to pdf file
|
Cassette Size:
|
160x100x4.6mm
(W x H xL)
|
|
Gel
Size:
|
140
x 80 x 1mm (W x H xL)
|
|
Number
of wells
|
20,
28*, 2-D
|
*Compatible with multichannel
pipettemen
PANTERATM L Gels
Cat. No. - link to pdf file
|
Cassette Size:
|
160
x 160 x 6.6mm (W x H xL)
|
|
Gel
Size:
|
140
x 140 x 1mm (W x H xL)
|
|
Number
of wells
|
20,
28*, 2-D
|
*Compatible with multichannel
pipettemen
PANTERATM
Gels are available in the following formulations:
|
Gel Type
|
Polyacrylamide
Percentage
|
Efficient Fractionation size (kDa)
|
Protein
Separation
|
Single
Percentage Gel
|
6%
|
100,000
- 500,000
|
|
|
8%
|
40,000
- 350,000
|
|
|
10%:
|
25,000
- 250,000
|
|
|
12%
|
15,000
- 200,000
|
|
|
14%
|
10,000
- 150,000
|
|
Gradient
Gel
|
4
- 10%
|
35,000
- 450,000
|
|
|
4
- 16%
|
20,000
- 400,000
|
|
|
4
- 20%
|
10,000
- 350,000
|
|
|
8
- 16%
|
15,000
- 300,000
|
|
|
10
- 20%
|
8,000
- 200,000
|
Polypeptide
Separation
|
Gradient
Gel
|
8
- 16%
|
3000
- 200,000
|
|
|
10
- 20%
|
2000
- 150,000
|
DNA
Analysis (TBE & TGE Buffer)
|
Single
Percentage Gel
|
6%
|
200
- 800 bp
|
|
|
8%
|
150
- 500 bp
|
|
|
10%
|
100
- 500 bp
|
|
|
12%
|
100
- 500 bp
|
|
Gradient
Gel
|
4
- 10%
|
200
- 1000 bp
|
|
|
8
- 12%
|
150
- 500 bp
|
|
|
8
- 16%
|
100
- 500 bp
|
|
|
Custom PANTERATM Gels
Enjoy the benefits and
convenience of pre-cast, professionally manufactured gels even if you can't
find the gel you need from our list? Let us provide you with a gel customized
for your samples or application. We can prepare and cast any type of gel you
need.
Select from any of the following:
- Gel concentrations or gradients from 4% to 20%
- Crosslinking ranges
from 1.5% to 5%
- Variable pH and component concentrations for Tris-HCL, TBE, or TGE Buffers
- Urea concentrations from 0 to 5 molar
- Additional reagents or additives such as Bis-Tris, Bicine, or gelatin
- Any standard comb configuration
Pricing
for customized PANTERATM Gels will depend on the specifications but
is not significantly different than for our catalog line of pre-cast gels.
Please contact us to discuss your needs. We would be happy to provide you with
a quote.
Note: Depending on the gel chemistry the
shelf-life may be shorter than for our standard pre-cast gels.
Blotting
Unit:
|
MINICA™ Western Blotting Unit
Easier and faster protein transfer
- Ultra-fast 20-minute
protein transfer
- Complete transfer
regardless of molecular weight
|
|
Specially configured for ERICATM Electrophoresis
Systems and optimized for PANTERATM Precast
Gels, the MINICATM Western Blotting Systems ensure quality,
reproducible, high-resolution results with a minimum amount of effort and
time. MINICATM has been designed to provide ultra-fast 20-minute
protein transfers without sacrificing resolution or uniformity. The design
effectively transfers all proteins, regardless of molecular weight, from the
gel to the blotting membrane faster and easier than any other commercially
available units.
Use of the MINICATM Western Blotting Unit with the high-speed gels with the ERICATM Electrophoresis System, enables you to complete your gel run
and transfer in just over half-an-hour. The excellent band resolution,
uniformity of transfer, and fast run times provide you with enhanced quality
results sooner.
The MINICATM Western Blotting Module includes parts listed
below. Operation of the MINICATM Western Blotting
System requires use of the Lower Buffer Chamber, Cell Lid, and Spacer Wedge
from the ERICATM Electrophoresis System.
|
· Cathode Plate
· Anode Plate
· Support Pad
|
|
Specifications:
|
MINICA™ S Transfer Blot Module
|
Cat. No. BDWB-101
|
|
Overall
Size:
|
51 x 111 x 137 mm (W x H x L)
|
|
Max
Gel Load:
|
2 gels
|
|
Buffer
Volume:
|
250 ml
|
|
Applicable
Gel:
|
PANTERA™ S Gel
|
|
|
Power Supplies
- Quick and easy switch select either 150 or 300 volts with
the KYOCATM NEWTRAD power supply.
- Precisely select the optimal voltage and current for your
samples with the KYOCATM VERSATILE power supply
BBI electrophoresis
power supplies are specially configured to provide uninterrupted, consistent
current at the higher power settings required for ERICATM
Electrophoresis Systems. These power supplies ensure optimal resolution and
fast results with the ERICATM Electrophoresis Systems.
KYOCATM VERSATILE Power Supply for Any ERICATM
MP Models
Cat. No. BDPS-201
- Input Power:
110 +/- 10% Volts, 50/60 Hz, 3-wire with grounded
- Output Power:
- Voltage: 10 -
300 Volts (adjustable with 1 volt increments)
- Current: 4-400
mAmps DC (adjustable in 1 mAmp
increments)
- Power: 75W maximium
- Dimensions: 204
x 73 x 295mm (W x H x L)
- Weight 1,900 g
KYOCATM
NEWTRAD Power Supply for ERICATM SMP & WMP Model
Cat. No. BDPS-101
- Input Power 110
+/- 10% Volts, 50/60 Hz, 3-wire with grounded supply.
- Output Power
- Voltage 150/
300 Volts (switchable)
- Current 200 mAmps DC
- Power 60W
maximum
- Dimensions: 84
x 52 x 165mm (W x H x L)
- Weight 600 g
Optimized Buffer Systems
To ensure you obtain the highest resolution and
reproducibility, Bionexus offers optimized and tested running and loading for
our ERICA Gel System.
|
Application
|
Running Buffer
|
Sample Prep. Buffer
|
|
SDS
PAGE
|
3g of Tris-Base,
14,4g of Glycine, 1g of SDS in 1L ddH2O
|
0625M Tris-HCL (pH
6.8),
5% 2-mercaptoethanol, 2% SDS,
20% glycerol,
0.005% BPB
|
|
Native
PAGE
|
3g of Tris-Base,
14,4g of Glycine in 1L ddH2O
|
0625M Tris-HCL (pH
6.8),
20% glycerol,
0.005% BPB
|
|
Polypeptide
|
3.1g of Tris-Base,
17.9g of Tricine, 1g of SDS in 1L ddH2O
|
0.0625M Tris-HCL
(pH 6.8),
4% 2-mercaptoethanol,
1% SDS, 20% glycerol,
0.005% BPB
|
|
DNA
(Tris-HCl)
|
3g of Tris-Base,
14,4g of Glycine, 1mM of EDTA in 1L ddH2O
|
0.0625M Tris-HCL
(pH 6.8),
20% Glycerol,
1mM EDTA,
0.05% BPB,
0.005% Xylene Cyanol
|
|
DNA
(TBE)
|
10.8g of Tris-Base,
5.5g of Borate, 1mM EDTA in 1L ddH2O
|
89mM Tirs-base,
89mM Boric Acid,
20% Glycerol, 1mM EDTA,
0.005% BPB, 0.05% Xylene Cyanol
|
|
DNA
(TGE)
|
3g of Tris-Base,
14.4g of Glycine, 1mM EDTAin
1L ddH2O
|
25mM Tris-base,
192mM Glycine, 20% Glycerol, 1mM EDTA, 0.005%
BPB,0.05% Xylene Cyanol
|
|
Ordering information: Please
contact us for pricing and any additional information
ERICATM
MP ELECTROPHORESIS SYSTEM
AND
PANTERATM
PRECAST GELS
ORDERING
INFORMATION
Please contact us for
pricing and any additional information
Notice
to Purchaser
This Product is to be used for Research Purposes
only. This product may not be resold, modified for resale, or used to
manufacture commercial products without the express written consent of Bionexus,
Inc. The
information contained herein such as specification, configuration, and data or
alike in part or in whole including price may be subject to change without
notice.
Copyrights © 2007 Bionexus, Inc. All Rights Reserved
ERICATM MP Series Electrophoresis System
Note: Please specify lid color
from the following options when ordering: blue, red, orange, and clear
|
Model
|
Catalog
No.
|
Description
|
Purchase Unit
|
|
ERICATM SMP
|
BDEP-101
|
ERICATM MP Series Electrophoresis System
Cell:
Overall Size: 143
x 111 x 74mm (W x H x L)
Gel plate capacity: 2
glass plates
Cooling System: Uniform
Lower Buffer Cooling System
Buffer Tank Volume: 350ml
Applicable Gel: PANTERA
S Gel
Power supply: Not
included
|
System
|
|
ERICATM WMP
|
BDEP-201
|
ERICATM
MP Series Electrophoresis System Cell:
Overall Size: 195 x 145 x 76mm (W x
H x L)
Gel plate capacity: 2
glass plates
Cooling System: Uniform Lower Buffer Cooling
System
Buffer Tank Volume: 900ml
Applicable Gel: PANTERA
W Gel
Power supply: Not
included
|
System
|
|
ERICATM LMP
|
BDEP-301
|
ERICATM MP Series Electrophoresis System
Cell:
Overall Size: 195
x 207 x 86mm (W x H x L)
Gel plate capacity: 2
glass plates
Cooling System: Uniform
Lower Buffer Cooling System
Buffer Tank Volume: 1,400
ml
Applicable Gel: PANTERA
L Gel
Power supply: Not
included
|
System
|
PANTERATM Precast Gels
Note: Please specify catalog number when ordering.
|
Model
|
Catalog
No.
|
Description
|
Purchase
Unit
|
|
PANTERATM S
|
See page 3
|
Cassette Size: 110
x 65 x 4.6 mm (W x H x L)
Gel Size: 90
x 45 x 1.0mm (W x H x L)
Number of wells 9*,
12,18*, 20, 2-D
Note: *Multichannel pipetteman operation applicable.
|
Pack (10 plates per pack)
|
|
PANTERATM W
|
See page 3
|
Cassette Size 160
x 100 x 4.6mm (W x H x L)
Gel Size: 140
x 80 x 1.0mm (W x H x L)
Number of wells 20,
28*, 2-D
Note: *Multichannel pipetteman operation applicable.
|
Pack (10 plates per pack)
|
|
PANTERATM L
|
See page 3
|
Cassette Size 160
x 160 x 6.6mm (W x H x L)
Gel Size: 140
x 138 x 1.0mm (W x H x L)
Number of wells 20,
28*, 2-D
Note: *Multichannel pipetteman operation applicable.
|
Pack (6 plates per pack)
|
PANTERATM Precast Gels Lab Starter Kit
Note: Please specify catalog number for
requested gel specification when ordering
|
Model
|
Catalog
No.
|
Description
|
Purchase Unit
|
|
PANTERATMS Lab Starter
|
BDLS-101
(See gel Catalog No. on page 4.)
|
One kit contains:
1)
1)
1) PANTERATMS 5 plates
2)
2)
2) 10X
Running Buffer 200
ml bottle
3)
3)
3) 1X
Sample Buffer 5 ml bottle
|
Kit
|
|
PANTERATM W Lab Starter
|
BDLS-201
(See gel Catalog No. on page 4.)
|
One kit contains:
4)
4)
1) PANTERATMW 5 plates
5)
5)
2) 10X Running
Buffer 200 ml
bottle
3)
1X Sample Buffer 5 ml
bottle
|
Kit
|
ERICATM MP Electrophoresis System Lab Starter Kit
|
Model
|
Catalog
No.
|
Description
|
Purchase Unit
|
|
ERICATM SMP
Lab Starter
|
BDLS-301
(See gel Catalog No. on page 4.)
|
One kit contains:
6)
6)
1) ERICATM
SMP 1 system
7)
7)
2) PANTERATMS 5 plates
8)
8)
3) 10X
Running Buffer 200
ml bottle
9)
9)
4) 1X Sample
Buffer 5 ml bottle
|
Kit
|
|
ERICATM WMP
Lab Starter
|
BDLS-401
(See gel Catalog No. on page 4.)
|
One kit contains:
10)
10)
1) ERICATM
WMP 1 system
11)
11)
2) PANTERATM
W 5 plates
12)
12)
3) 10X
Running Buffer 200
ml bottle
4) 1X Sample
Buffer 5 ml bottle
|
Kit
|
KYOCATM Power Supply
|
Model
|
Catalog
No.
|
Description
|
Purchase Unit
|
|
KYOCATM NEWTRAD
|
BDPS-101
|
13)
13) Input Power 110±10% VAC, 50/60 Hz, 3-wire with grounded
14)
14) Output Power
15) 15) Voltage 150/300 VDC switchable
16) 16) Current 200mA DC
Power 60W
max
17)
17) Dimensions: 84 x 52 x 165mm (W x H x L)
Weight 600g
|
System
|
|
KYOCATM VERSATILE
|
BDPS-201
|
18)
18) Input Power: 110±10% VAC, 50/60 Hz, 3-wire with grounded
19)
19) Output Power:
20) 20) Voltage: 10-300 VDC
adjustable with 1V increment
21) 21) Current: 4-400 mA DC adjustable in 1mA increment
22) 22) Power: 75W max
23)
23) Dimensions: 204 x 73 x 295mm (W x H x L)
24)
24) Weight 1,900g
|
System
|
PANTERATM Precast Gels Selection
PANTERATMS
Note: * Multichannel pipetteman operation applicable.
|
Tris-HCL Gel for
Protein Separation
|
|
Tris-HCL Gel for
Polypeptide Separation
|
|
TBE Gel for DNA
Analysis
|
|
PANTERATMS
|
|
PANTERATMS
|
|
PANTERATMS
|
|
Cassette Size:
110 x 65 x 4.6mm (W x H x L)
|
|
Cassette Size:
110 x 65 x 4.6mm (W x H x L)
|
|
Cassette Size:
110 x 65 x 4.6mm (W x H x L)
|
|
Gel Size: 90 x 45
x 1.0mm (W x H x L)
|
|
Gel Size: 90 x 45
x 1.0mm (W x H x L)
|
|
Gel Size: 90 x 45
x 1.0mm (W x H x L)
|
|
Single Percentage
Gel
|
|
Gradient Gel
|
|
Single Percentage
Gel
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
Efficient
Fractionation Size (kDa)
|
|
Efficient
Fractionation Size (kDa)
|
|
Efficient
Fractionation Size (bp)
|
|
BSP-012B
|
6%
100,000 – 500,000
|
9*
|
|
BSP-022M
|
8 - 16%
3,000 – 200,000
|
9*
|
|
BSD-042B
|
6%
200 – 800 bp
|
9*
|
|
BSP-013B
|
12
|
|
BSP-023M
|
12
|
|
BSD-043B
|
12
|
|
BSP-015B
|
18*
|
|
BSP-025M
|
18*
|
|
BSD-045B
|
18*
|
|
BSP-016B
|
20
|
|
BSP-026M
|
20
|
|
BSD-046B
|
20
|
|
BSP-018B
|
2-D
|
|
BSP-028M
|
2-D
|
|
BSD-042C
|
8%
150 – 500 bp
|
9*
|
|
BSP-012C
|
8%
40,000
– 350,000
|
9*
|
|
BSP-022P
|
10 - 20%
2,000
– 150,000
|
9*
|
|
BSD-043C
|
12
|
|
BSP-013C
|
12
|
|
BSP-023P
|
12
|
|
BSD-045C
|
18*
|
|
BSP-015C
|
18*
|
|
BSP-025P
|
18*
|
|
BSD-046C
|
20
|
|
BSP-016C
|
20
|
|
BSP-026P
|
20
|
|
BSD-042D
|
10%
100 – 500 bp
|
9*
|
|
BSP-018C
|
2-D
|
|
BSP-028P
|
2-D
|
|
BSD-043D
|
12
|
|
BSP-012D
|
10%
25,000 – 250,000
|
9*
|
|
|
|
|
|
BSD-045D
|
18*
|
|
BSP-013D
|
12
|
|
Tris HCl Gel for DNA Analysis
|
|
BSD-046D
|
20
|
|
BSP-015D
|
18*
|
|
PANTERATMS
|
|
BSD-042E
|
12%
100 –500 bp
|
9*
|
|
BSP-016D
|
20
|
|
Cassette Size:
110 x 65 x 4.6mm (W x H x L)
|
|
BSD-043E
|
12
|
|
BSP-018D
|
2-D
|
|
Gel Size: 90 x 45
x 1.0mm (W x H x L)
|
|
BSD-045E
|
18*
|
|
BSP-012E
|
12%
15,000 – 200,000
|
9*
|
|
Single Percentage
Gel
|
|
BSD-046E
|
20
|
|
BSP-013E
|
12
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
Gradient Gel
|
|
BSP-015E
|
18*
|
|
Efficient
Fractionation Size (bp)
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
BSP-016E
|
20
|
|
BSD-032B
|
6%
200 – 800 bp
|
9*
|
|
Efficient
Fractionation Size (bp)
|
|
BSP-018E
|
2-D
|
|
BSD-033B
|
12
|
|
BSD-042H
|
4 - 10%
200 – 1,000 bp
|
9*
|
|
BSP-012F
|
14%
10,000 – 150,000
|
9*
|
|
BSD-035B
|
18*
|
|
BSD-043H
|
12
|
|
BSP-013F
|
12
|
|
BSD-036B
|
20
|
|
BSD-045H
|
18*
|
|
BSP-015F
|
18*
|
|
BSD-032C
|
8%
150 – 500 bp
|
9*
|
|
BSD-046H
|
20
|
|
BSP-016F
|
20
|
|
BSD-033C
|
12
|
|
BSD-042L
|
8 - 12%
150 – 500 bp
|
9*
|
|
BSP-018F
|
2-D
|
|
BSD-035C
|
18*
|
|
BSD-043L
|
12
|
|
Gradient Gel
|
|
BSD-036C
|
20
|
|
BSD-045L
|
18*
|
|
Catalog No.
|
Gel Concentration (%T)
|
Comb Format
(Wells)
|
|
BSD-032D
|
10%
100 – 500 bp
|
9*
|
|
BSD-046L
|
20
|
|
Efficient Fractionation Size (kDa)
|
|
BSD-033D
|
12
|
|
BSD-042K
|
4 - 20%
100 – 500 bp
|
9*
|
|
BSP-012H
|
4- 10%
35,000 – 450,000
|
9*
|
|
BSD-035D
|
18*
|
|
BSD-043K
|
12
|
|
BSP-013H
|
12
|
|
BSD-036D
|
20
|
|
BSD-045K
|
18*
|
|
BSP-015H
|
18*
|
|
BSD-032E
|
12%
100 –500 bp
|
9*
|
|
BSD-046K
|
20
|
|
BSP-016H
|
20
|
|
BSD-033E
|
12
|
|
|
BSP-018H
|
2-D
|
|
BSD-035E
|
18*
|
|
|
BSP-012J
|
4 - 16%
20,000
– 400,000
|
9*
|
|
BSD-036E
|
20
|
|
|
BSP-013J
|
12
|
|
Gradient Gel
|
|
|
BSP-015J
|
18*
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
|
BSP-016J
|
20
|
|
Efficient
Fractionation Size (bp)
|
|
|
BSP-018J
|
2-D
|
|
BSD-032H
|
4 - 10%
200 – 1,000 bp
|
9*
|
|
|
BSP-012K
|
4 - 20%
10,000 – 350,000
|
9*
|
|
BSD-033H
|
12
|
|
|
BSP-013K
|
12
|
|
BSD-035H
|
18*
|
|
|
BSP-015K
|
18*
|
|
BSD-036H
|
20
|
|
|
BSP-016K
|
20
|
|
BSD-032L
|
8 - 12%
150 – 500 bp
|
9*
|
|
|
BSP-018K
|
2-D
|
|
BSD-033L
|
12
|
|
|
BSP-012M
|
8 - 16%
15,000 – 300,000
|
9*
|
|
BSD-035L
|
18*
|
|
|
BSP-013M
|
12
|
|
BSD-036L
|
20
|
|
|
BSP-015M
|
18*
|
|
BSD-032K
|
4 - 20%
100 – 500 bp
|
9*
|
|
|
BSP-016M
|
20
|
|
BSD-033K
|
12
|
|
|
BSP-018M
|
2-D
|
|
BSD-035K
|
18*
|
|
|
BSP-012P
|
10 - 20%
8,000 – 200,000
|
9*
|
|
BSD-036K
|
20
|
|
|
BSP-013P
|
12
|
|
|
BSP-015P
|
18*
|
|
|
BSP-016P
|
20
|
|
|
BSP-018P
|
2-D
|
|
PANTERATM Precast Gels Selection
PANTERATMS (cont.)
Note: * Multichannel pipetteman operation applicable.
|
|
TGE Gel for DNA
Analysis
|
|
|
PANTERATMS
|
|
|
Cassette Size:
110 x 65 x 4.6mm (W x H x L)
|
|
|
Gel Size: 90 x 45
x 1.0mm (W x H x L)
|
|
|
Single Percentage
Gel
|
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
|
Efficient
Fractionation Size (bp)
|
|
|
BSD-052B
|
6%
200 – 800 bp
|
9*
|
|
|
BSD-053B
|
12
|
|
|
BSD-055B
|
18*
|
|
|
BSD-056B
|
20
|
|
|
BSD-052C
|
8%
150 – 500 bp
|
9*
|
|
|
BSD-053C
|
12
|
|
|
BSD-055C
|
18*
|
|
|
BSD-056C
|
20
|
|
|
BSD-052D
|
10%
100 – 500 bp
|
9*
|
|
|
BSD-053D
|
12
|
|
|
BSD-055D
|
18*
|
|
|
BSD-056D
|
20
|
|
|
BSD-052E
|
12%
100 –500 bp
|
9*
|
|
|
BSD-053E
|
12
|
|
|
BSD-055E
|
18*
|
|
|
BSD-056E
|
20
|
|
|
Gradient Gel
|
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
|
Efficient
Fractionation Size (bp)
|
|
|
BSD-052H
|
4 - 10%
200 – 1,000 bp
|
9*
|
|
|
BSD-053H
|
12
|
|
|
BSD-055H
|
18*
|
|
|
BSD-056H
|
20
|
|
|
BSD-052L
|
8 - 12%
150 – 500 bp
|
9*
|
|
|
BSD-053L
|
12
|
|
|
BSD-055L
|
18*
|
|
|
BSD-056L
|
20
|
|
|
BSD-052K
|
4 - 20%
100 – 500 bp
|
9*
|
|
|
BSD-053K
|
12
|
|
|
BSD-055K
|
18*
|
|
|
BSD-056K
|
20
|
PANTERATMW
Note: * Multichannel pipetteman operation applicable.
|
Tris-HCL Gel for
Protein Separation
|
|
Tris-HCL Gel for
Polypeptide Separation
|
|
TBE Buffer Gel
for DNA Analysis
|
|
PANTERATMW
|
|
PANTERATMW
|
|
PANTERATMW
|
|
Cassette Size:
160 x 100 x 4.6mm (W x H x L)
|
|
Cassette Size:
160 x 100 x 4.6mm (W x H x L)
|
|
Cassette Size:
160 x 100 x 4.6mm (W x H x L)
|
|
Gel Size: 140 x
80 x 1.0mm (W x H x L)
|
|
Gel Size: 140 x
80 x 1.0mm (W x H x L)
|
|
Gel Size: 140 x
80 x 1.0mm (W x H x L)
|
|
Single Percentage
Gel
|
|
Gradient Gel
|
|
Single Percentage
Gel
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
Efficient
Fractionation Size (kDa)
|
|
Efficient
Fractionation Size (kDa)
|
|
Efficient
Fractionation Size (bp)
|
|
BWP-016B
|
6%
100,000 – 500,000
|
20
|
|
BWP-026M
|
8 – 16%
3,000 – 200,000
|
20
|
|
BWD-046B
|
6%
200 – 800 bp
|
20
|
|
BWP-017B
|
28*
|
|
BWP-027M
|
28*
|
|
BWD-047B
|
28*
|
|
BWP-018B
|
2-D
|
|
BWP-028M
|
2-D
|
|
BWD-048B
|
2-D
|
|
BWP-016C
|
8%
40,000 – 350,000
|
20
|
|
BWP-026P
|
10 – 20%
2,000 – 150,000
|
20
|
|
BWD -046C
|
8%
150 – 500 bp
|
20
|
|
BWP-017C
|
28*
|
|
BWP-027P
|
28*
|
|
BWD -047C
|
28*
|
|
BWP-018C
|
2-D
|
|
BWP-028P
|
2-D
|
|
BWD -048C
|
2-D
|
|
BWP-016D
|
10%
25,000 – 250,000
|
20
|
|
|
|
|
|
BWD -046D
|
10%
100 – 500 bp
|
20
|
|
BWP-017D
|
28*
|
|
Tris HCl Gel for DNA Analysis
|
|
BWD -047D
|
28*
|
|
BWP-018D
|
2-D
|
|
PANTERATMW
|
|
BWD -048D
|
2-D
|
|
BWP-016E
|
12%
15,000 – 200,000
|
20
|
|
Cassette Size:
160 x 100 x 4.6mm (W x H x L)
|
|
BWD -046E
|
12%
100 –500 bp
|
20
|
|
BWP-017E
|
28*
|
|
Gel Size: 140 x
80 x 1.0mm (W x H x L)
|
|
BWD -047E
|
28*
|
|
BWP-018E
|
2-D
|
|
Single Percentage
Gel
|
|
BWD -048E
|
2-D
|
|
BWP-016F
|
14%
10,000 – 150,000
|
20
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
Gradient Gel
|
|
BWP-017F
|
28*
|
|
Efficient
Fractionation Size (bp)
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
BWP-018F
|
2-D
|
|
BWD-036B
|
6%
200 – 800 bp
|
20
|
|
Efficient
Fractionation Size (bp)
|
|
Gradient Gel
|
|
BWD-037B
|
28*
|
|
BWD-046H
|
4 - 10%
200 – 1,000 bp
|
20
|
|
Catalog No.
|
Gel Concentration (%T)
|
Comb Format
(Wells)
|
|
BWD-038B
|
2-D
|
|
BWD-047H
|
28*
|
|
Efficient Fractionation Size (kDa)
|
|
BWD -036C
|
8%
150 – 500 bp
|
20
|
|
BWD-048H
|
2-D
|
|
BWP-016H
|
4- 10%
35,000 – 450,000
|
20
|
|
BWD -037C
|
28*
|
|
BWD -046L
|
8 - 12%
150 – 500 bp
|
20
|
|
BWP-017H
|
28*
|
|
BWD -038C
|
2-D
|
|
BWD -047L
|
28*
|
|
BWP-018H
|
2-D
|
|
BWD -036D
|
10%
100 – 500 bp
|
20
|
|
BWD -048L
|
2-D
|
|
BWP-016J
|
4 - 16%
20,000 – 400,000
|
20
|
|
BWD -037D
|
28*
|
|
BWD -046K
|
4 - 20%
100 – 500 bp
|
20
|
|
BWP-017J
|
28*
|
|
BWD -038D
|
2-D
|
|
BWD -047K
|
28*
|
|
BWP-018J
|
2-D
|
|
BWD -036E
|
12%
100 –500 bp
|
20
|
|
BWD -048K
|
2-D
|
|
BWP-016K
|
4 - 20%
10,000 – 350,000
|
20
|
|
BWD -037E
|
28*
|
|
|
BWP-017K
|
28*
|
|
BWD -038E
|
2-D
|
|
|
BWP-018K
|
2-D
|
|
Gradient Gel
|
|
|
BWP-016M
|
8 - 16%
15,000 – 300,000
|
20
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
|
BWP-017M
|
28*
|
|
Efficient
Fractionation Size (bp)
|
|
|
BWP-018M
|
2-D
|
|
BWD-036H
|
4 - 10%
200 – 1,000 bp
|
20
|
|
|
BWP-016P
|
10 - 20%
8,000 – 200,000
|
20
|
|
BWD-037H
|
28*
|
|
|
BWP-017P
|
28*
|
|
BWD-038H
|
2-D
|
|
|
BWP-018P
|
2-D
|
|
BWD –036L
|
8 - 12%
150 – 500 bp
|
20
|
|
|
|
|
|
|
BWD –037L
|
28*
|
|
|
|
|
|
|
BWD –038L
|
2-D
|
|
|
|
|
|
|
BWD –036K
|
4 - 20%
100 – 500 bp
|
20
|
|
|
|
|
|
|
BWD –037K
|
28*
|
|
|
|
|
|
|
BWD –038K
|
2-D
|
|
PANTERATMW (cont.)
Note: * Multichannel pipetteman operation applicable.
|
|
TGE Gel for DNA
Analysis
|
|
|
PANTERATMW
|
|
|
Cassette Size:
160 x 100 x 4.6mm (W x H x L)
|
|
|
Gel Size: 140 x
80 x 1.0mm (W x H x L)
|
|
|
Single Percentage
Gel
|
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
|
Efficient
Fractionation Size (bp)
|
|
|
BWD-056B
|
6%
200 – 800 bp
|
20
|
|
|
BWD-057B
|
28*
|
|
|
BWD-058B
|
2-D
|
|
|
BWD -056C
|
8%
150 – 500 bp
|
20
|
|
|
BWD -057C
|
28*
|
|
|
BWD -058C
|
2-D
|
|
|
BWD -056D
|
10%
100 – 500 bp
|
20
|
|
|
BWD -057D
|
28*
|
|
|
BWD -058D
|
2-D
|
|
|
BWD -056E
|
12%
100 –500 bp
|
20
|
|
|
BWD -057E
|
28*
|
|
|
BWD -058E
|
2-D
|
|
|
Gradient Gel
|
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
|
Efficient
Fractionation Size (bp)
|
|
|
BWD-056H
|
4 - 10%
200 – 1,000 bp
|
20
|
|
|
BWD-057H
|
28*
|
|
|
BWD-058H
|
2-D
|
|
|
BWD -056L
|
8 - 12%
150 – 500 bp
|
20
|
|
|
BWD -057L
|
28*
|
|
|
BWD -058L
|
2-D
|
|
|
BWD -056K
|
4 - 20%
100 – 500 bp
|
20
|
|
|
BWD -057K
|
28*
|
|
|
BWD -058K
|
2-D
|
PANTERATML
Note: * Multichannel pipetteman operation applicable.
|
Tris-HCL Gel for
Protein Separation
|
|
Tris-HCL Gel for
Polypeptide Separation
|
|
TBE Gel for DNA
Analysis
|
|
PANTERATML
|
|
PANTERATML
|
|
PANTERATML
|
|
Cassette Size:
160 x 160 x 6.6mm (W x H x L)
|
|
Cassette Size:
160 x 160 x 6.6mm (W x H x L)
|
|
Cassette Size:
160 x 160 x 6.6mm (W x H x L)
|
|
Gel Size: 140 x
138 x 1.0mm (W x H x L)
|
|
Gel Size: 140 x
138 x 1.0mm (W x H x L)
|
|
Gel Size: 140 x
138 x 1.0mm (W x H x L)
|
|
Single Percentage
Gel
|
|
Gradient Gel
|
|
Single Percentage
Gel
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
Efficient
Fractionation Size (kDa)
|
|
Efficient
Fractionation Size (kDa)
|
|
Efficient
Fractionation Size (bp)
|
|
BLP-016B
|
6%
100,000 – 500,000
|
20
|
|
BLP-026M
|
8 – 16%
3,000 – 200,000
|
20
|
|
BLD-046B
|
6%
200 – 800 bp
|
20
|
|
BLP-017B
|
28*
|
|
BLP-027M
|
28*
|
|
BLD-047B
|
28*
|
|
BLP-018B
|
2-D
|
|
BLP-028M
|
2-D
|
|
BLD-048B
|
2-D
|
|
BLP-016C
|
8%
40,000 – 350,000
|
20
|
|
BLP-026P
|
10 – 20%
2,000 – 150,000
|
20
|
|
BLD -046C
|
8%
150 – 500 bp
|
20
|
|
BLP-017C
|
28*
|
|
BLP-027P
|
28*
|
|
BLD -047C
|
28*
|
|
BLP-018C
|
2-D
|
|
BLP-028P
|
2-D
|
|
BLD -048C
|
2-D
|
|
BLP-016D
|
10%
25,000 – 250,000
|
20
|
|
|
|
|
|
BLD -046D
|
10%
100 – 500 bp
|
20
|
|
BLP-017D
|
28*
|
|
Tris HCl Gel for DNA Analysis
|
|
BLD -047D
|
28*
|
|
BLP-018D
|
2-D
|
|
PANTERATML
|
|
BLD -048D
|
2-D
|
|
BLP-016E
|
12%
15,000 – 200,000
|
20
|
|
Cassette Size:
160 x 160 x 6.6mm (W x H x L)
|
|
BLD -046E
|
12%
100 –500 bp
|
20
|
|
BLP-017E
|
28*
|
|
Gel Size: 140 x
138 x 1.0mm (W x H x L)
|
|
BLD -047E
|
28*
|
|
BLP-018E
|
2-D
|
|
Single Percentage
Gel
|
|
BLD -048E
|
2-D
|
|
BLP-016F
|
14%
10,000 – 150,000
|
20
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
Gradient Gel
|
|
BLP-017F
|
28*
|
|
Efficient
Fractionation Size (bp)
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
BLP-018F
|
2-D
|
|
BLD-036B
|
6%
200 – 800 bp
|
20
|
|
Efficient
Fractionation Size (bp)
|
|
Gradient Gel
|
|
BLD-037B
|
28*
|
|
BLD-046H
|
4 - 10%
200 – 1,000 bp
|
20
|
|
Catalog No.
|
Gel Concentration (%T)
|
Comb Format
(Wells)
|
|
BLD-038B
|
2-D
|
|
BLD-047H
|
28*
|
|
Efficient Fractionation Size (kDa)
|
|
BLD -036C
|
8%
150 – 500 bp
|
20
|
|
BLD-048H
|
2-D
|
|
BLP-016H
|
4- 10%
35,000 – 450,000
|
20
|
|
BLD -037C
|
28*
|
|
BLD -046L
|
8 - 12%
150 – 500 bp
|
20
|
|
BLP-017H
|
28*
|
|
BLD -038C
|
2-D
|
|
BLD -047L
|
28*
|
|
BLP-018H
|
2-D
|
|
BLD -036D
|
10%
100 – 500 bp
|
20
|
|
BLD -048L
|
2-D
|
|
BLP-016J
|
4 - 16%
20,000 – 400,000
|
20
|
|
BLD -037D
|
28*
|
|
BLD -046K
|
4 - 20%
100 – 500 bp
|
20
|
|
BLP-017J
|
28*
|
|
BLD -038D
|
2-D
|
|
BLD -047K
|
28*
|
|
BLP-018J
|
2-D
|
|
BLD -036E
|
12%
100 –500 bp
|
20
|
|
BLD -048K
|
2-D
|
|
BLP-016K
|
4 - 20%
10,000 – 350,000
|
20
|
|
BLD -037E
|
28*
|
|
|
BLP-017K
|
28*
|
|
BLD -038E
|
2-D
|
|
|
BLP-018K
|
2-D
|
|
Gradient Gel
|
|
|
BLP-016M
|
8 - 16%
15,000 – 300,000
|
20
|
|
Catalog No.
|
Gel Concentration (%T)
|
Comb Format
(Wells)
|
|
|
BLP-017M
|
28*
|
|
Efficient Fractionation Size (kDa)
|
|
|
BLP-018M
|
2-D
|
|
BLD-036H
|
4 - 10%
200 – 1,000 bp
|
20
|
|
|
BLP-016P
|
10 - 20%
8,000 – 200,000
|
20
|
|
BLD-037H
|
28*
|
|
|
BLP-017P
|
28*
|
|
BLD-038H
|
2-D
|
|
|
BLP-018P
|
2-D
|
|
BLD –036L
|
8 - 12%
150 – 500 bp
|
20
|
|
|
|
|
|
|
BLD –037L
|
28*
|
|
|
|
|
|
|
BLD –038L
|
2-D
|
|
|
|
|
|
|
BLD –036K
|
4 - 20%
100 – 500 bp
|
20
|
|
|
|
|
|
|
BLD –037K
|
28*
|
|
|
|
|
|
|
BLD –038K
|
2-D
|
|
PANTERATML (cont.)
Note: * Multichannel pipetteman operation applicable.
|
|
TGE Buffer Gel
for DNA Analysis
|
|
|
PANTERATML
|
|
|
Cassette Size:
160 x 160 x 6.6mm (W x H x L)
|
|
|
Gel Size: 140 x
138 x 1.0mm (W x H x L)
|
|
|
Single Percentage
Gel
|
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
|
Efficient
Fractionation Size (bp)
|
|
|
BLD-056B
|
6%
200 – 800 bp
|
20
|
|
|
BLD-057B
|
28*
|
|
|
BLD-058B
|
2-D
|
|
|
BLD -056C
|
8%
150 – 500 bp
|
20
|
|
|
BLD -057C
|
28*
|
|
|
BLD -058C
|
2-D
|
|
|
BLD -056D
|
10%
100 – 500 bp
|
20
|
|
|
BLD -057D
|
28*
|
|
|
BLD -058D
|
2-D
|
|
|
BLD -056E
|
12%
100 –500 bp
|
20
|
|
|
BLD -057E
|
28*
|
|
|
BLD -058E
|
2-D
|
|
|
Gradient Gel
|
|
|
Catalog No.
|
Gel Concentration
(%T)
|
Comb Format
(Wells)
|
|
|
Efficient
Fractionation Size (bp)
|
|
|
BLD-056H
|
4 - 10%
200 – 1,000 bp
|
20
|
|
|
BLD-057H
|
28*
|
|
|
BLD-058H
|
2-D
|
|
|
BLD -056L
|
8 - 12%
150 – 500 bp
|
20
|
|
|
BLD -057L
|
28*
|
|
|
BLD -058L
|
2-D
|
|
|
BLD -056K
|
4 - 20%
100 – 500 bp
|
20
|
|
|
BLD -057K
|
28*
|
|
|
BLD -058K
|
2-D
|
MEMO
