Applicable to isothermal gene amplification by programming. Rapid and accurate programmable temperature control. Convenient, interchangeable well plate sizes.
Aluminum block is option

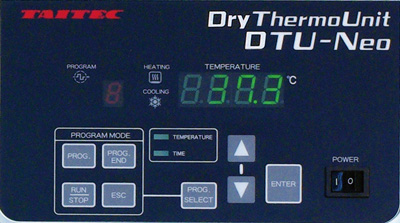

Operation panel
Applications
●Various enzyme reaction and heat denaturation DNA/RNA
Features
Large enough size for half block x 2 or full block x 1
It can have one of Full block which can have 40 of 1.5ml micro tubes. It also can have two of Half block which is common use with Mini and can use two types of container.
Various exchanging block containers
We have a several half blocks (option) to meet with various containers. Full block for 0.2ml micro tube can have PCR plate as well. For detail please see below.
Two types with different temperature range, Cooling type using a Peltier system
There are DTU-Mini operates at Room temperature +3ºC, CTU-Mini which can handle low temperature by cooling with environmental friendly and energy saving Peltier heating and cooling system. Either one have unique and improved temperature transition velocity.
Temperature programming with stop function
Wait function, stop watch timer counts until temperature reach to the set value. Together with improved temperature transition velocity, it can perform accurate temperature change at isothermal gene amplification.
Specifications
Model
DTU-Neo
Temperature Range
RT+3ºC – +105 ºC
Temp. Control Accuracy
±0.1ºC – +0.2 ºC
Temperature transition time (environmental temperature: +25 ºC)
20ºC –> 100ºC/ about 20min(when using B-1140) 100ºC –> 25ºC/ about 60min(when using B-1140)
Minimum temperature setting unit
0.1ºC
Temperature setting
Up and down setting
Temperature Display
Digital display (setting temperature and current temperature)
Fuse, overvoltage protection, over current protection, overheat, sensor error, nonvolatile memory error, protection of sample (high/low temperature), high temperature cutout
Dimensions
210 x 268 x 175Hmm
Weight
Approx. 4kg (exclude block)
Power Supply
AC100V 2A
Standard Accessory
Hook handle for taking block out
●With open cover and environment over +30ºC, sometimes specifications doesn’t meet.
Aluminum block for DTU/CTU-Neo (micro tube 1.5ml x 40) ■Applicable Container / Number：micro tube 1.5ml x …
