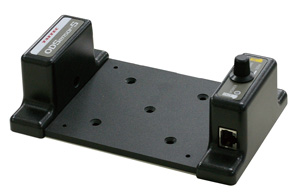

OD-Monitor measurement unit ODSensor-S
Non-contact turbidimeter for Shaking culture. Sensor measurement unit of OD-Monitor A & S.
Applications
●Cell density observation of bacterial in culturing
●Cell density observation of pathogenic bacteria
●Cell observation of bacillus in culturing under anaerobic conditions which gas concentration is important
●Cell density observation of bacteria with slow multiplication rate
●Cell density observation of floating mammals cell (scheduled)
Features
Connect with incubator shaker BR series

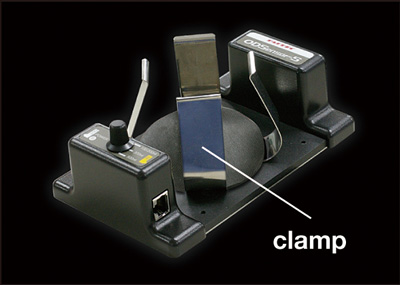

Image of installation ODSenseo-S to clamp
Set ODSensor-S to the Clamp shaking rack. (Refer to left photograph)Measure by the following culture conditions.It is also possible to use with our double shaker NR series.
– Volume : 1/5 of capacity of Elrenmeyer flask ±10%
– Sｈaking : Rotating, 80rpm – (measurable only in shaking)
– Shaking speed : Either of 25/30/40/50mm
– Temperature : +15ºC – +50ºC
Applied to 100/200/300/500ml glass Erlenmeyer flasks

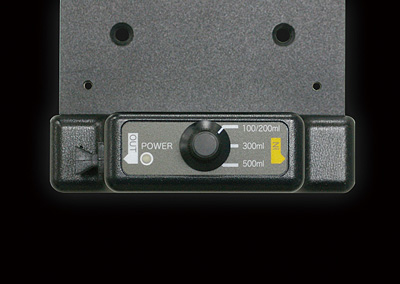

Fix Erlenmeyer flask by clamp (optional) to the rack.Select the Elrenmeyer flask size before measurementfor both control unit (optional) and the measurement unit.
Specifications
| Model | ODSensor-S |
|---|---|
| Measurement Method | Infrared rays penetration light method (horizontal projection) |
| Measurement Wavelength | 950nm |
| Connection | One set (use attached 0.5m flat cable ) |
| Power Supply | Supplied from ODBox-A (option) |
| Standard Accessory | Flask pad large, small x each 1,Screw for installation (M4x15mm) x 6, Cable clip large x 2 + small x 4, Flat cable (0.5m) x 1 |
| (*)Large is for 300ml and small is for 100/200ml. The pad for 500ml is attached to clamp CF-0500. | |
| ●ODBox-A, Clamp is sold separately. | |

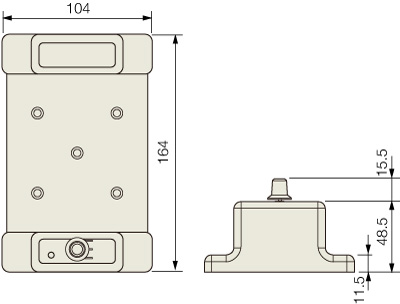

Dimensions
Accessories
Clamp | CF-0100
Parts to fix Erlenmeyer flask by installing it on Universal shaking rack and angle rack
■Application Container：100ml Erlenmeyer flask ■：
Clamp | CF-0200
Parts to fix Erlenmeyer flask by installing it on Universal shaking rack and angle rack
■Application Container：200ml Erlenmeyer flask ■：
Clamp | CF-0300
Parts to fix Erlenmeyer flask by installing it on Universal shaking rack and angle rack
■Application Container：300ml Erlenmeyer flask ■Sta …
Clamp | CF-0500
Parts to fix Erlenmeyer flask by installing it on Universal shaking rack and angle rack
■Application Container：500ml Erlenmeyer flask ■Sta …
Universal shaking platform | MT-2925
It is suitable shaking rack to shake Erlenmeyer flask and centrifuge tube stably.
■Dimensions：290 x 250 x 23Hmm ■Weight：Approx. 0.9k …

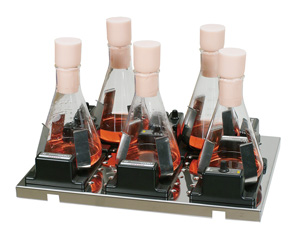

Universal shaking platform | MT-4030
It is suitable shaking rack to shake Erlenmeyer flask and centrifuge tube stably.
■Dimensions：400 x 300 x 23Hmm ■Weight：Approx.1.4Kg
Color cap & tag | OD-CAP0408
Cable tag for identifying each sensor
■： ■：
Flat cable(2m) | OD-CAV0200
Connecting cable between ODBox and ODSensor
■： ■：
