Large size constant temperature incubator shaker. Save your space with lift-up door, and stackable. Useable as laboratory table.
●Incubating microorganism such as E. Coli ●Incubating yeast and insect cells, psychrotroph

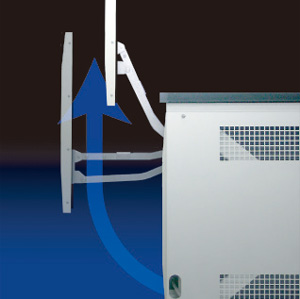

Lift up door saves lab space.
Upon door lift, it comes about 30cm forward Accepted “lift up door” which slide open vertical. Since it doesn’t need much front space to open, saves space. Shaking rack with conventional drawer type.
Energy saving operation function consumes 1/4 of power consumption
It saves energy by turning off freezer automatically when the setting temperature is 9ºC higher than environment.

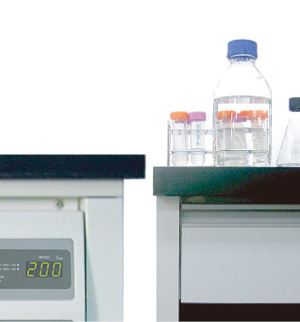

It can be used as a side bench counter top when it is not stacked
Comparison to a common experimental bench. Top board is the same material with bench. It can be used as temporary work bench area.

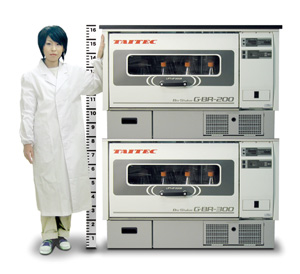

Stackable up to 2 levels
Even stacked, upper Shaking Rack is only about 113cm high. Stacking installation up to 2 levels is possible.
+4ºC - +80ºC
Temp. Control Accuracy
±0.3ºC - 1.0ºC (*1)
Switch orbital / Reciprocal
25 - 300rpm (Shake below 200rpm when shaking on upper stack)
Switch 25/50mm (*2)
Dimensions of stand
700 x 500mm (chamber dimension: 385mm)
Approx. 10kg (exclude Shaking Rack)
Lift up door
+5ºC - +35ºC
Display (Temp. and speed)
4 pattern, 9 segment / temperature shaking speed time (for each segment) [time setting range: 00h00min - 99h59min], wait function (*3)
Safety device / function
Short/over current breaker, high temperature cutout switch, freezer high temperature cutting circuit, current limiter, overcurrent protection, fuse, filter check lamp, brake function on detection of shaking error, temperature error sensor, nonvolatile memory error, alarm for sample temperature protection (optional), door opening check, brake function on detection of motor overdrive (detection of abnormal pulse)
1200 x 800 x 810Hmm (include top board) * dimension of top board = 1200 x 750 x 25Hmm
Approx. 235kg (*4)
AC100V 12A (*5)
Universal shaking rack (MT-7050, clamp sold separately) x 1, Phillips x 1, spacer board (t1.0/t2.0) x 2 each, cramp for stacking (*6)
(*1) Not include temperature change right after defrost function (electromagnetic valve switch) turned on.
(*2) 50mm on factory shipment. If you want to change, please call TITEC service center.
(*3) Wait function is start shaking after reaching the desired temperature.
(*4) Since this machine is very heavy, please make sure the strength of floor.
(*5) Allowable voltage fluctuation is ±5% for AC100V.
(*6) Cramp for stacking will be attached for those who desire stack installation. Wheels are attached on deliver though they are just for carry and not attached.
