Up to 24 pcs for Microplates! Large capacity constant temperature incubator shaker for 96-well plates. The FL type can be temperature-controlled from +4℃. The FP type is CFC-free and energy-saving thanks to Peltier cooling.
●Shaking culture with Deep well plates ●ELISA and Phage display method ●Enzymatic digestion, Biodegradability tests, etc.
Much quieter than conventional models. FP type uses Peltier cooling to save energy.
The balance of the shaking platform has been thoroughly improved,making it much more stable and quieter than our previous models(noise level at 1500 r/min is about 1/2). 430FL can be temperaturecontrolled from +4℃, enabling low-temperature cultivation or storage at low temperature after cultivation at 37℃. 430FP can be temperature-controlled from +20℃ and consumes only about 1/5 of power (at 37℃ and 1500 r/min) and 7 A of power supply capacity, making it very energy-efficient.
Huge capacity enables temperature adjustment from +4 ºC.
Maximizer has freezer system within its large body. It can control temperature +4℃ to +70℃.
Work effectively by original system and mixing speed at 200 – 1500 rpm.
Strongly mix micro plate / deep well plate. When incubating E.Coli and yeast by shaking, the same cell growth as with Erlenmeyer’s flask can be obtained in those vials which are not originally suitable for incubation.
Maximum 24 micro plates or 12 deep wells
Shaking rack (optional accessory) can be installed up to 4 levels for micro plate (6 plates per level) and 2 levels for deep wells (6 pates per level).Deep well plates --> 6 plates can be placed on each platform. 2 sets of platform can be attached inside of the unit. Microplates --> 6 plates can be placed on each platform. 4 sets of platform can be attached inside of the unit.
Equipped with reverse shaking mode (available below 1000 rpm)
Turning ON this reverse shaking function can turn rotation direction at any timing. Though maximum speed at reverse mode is 1000rpm, this function increase efficiency of shaking and helps dissolving hardly soluble materials.
+4℃ to +70℃
Temp. Control Accuracy
±0.3℃ to ±1.0℃ (*1)
Horizontal eccentric shaking (Inverting function)
200 to 1500 r/min(Up to 1000 r/min at inverting shaking)
Well plate ×12 Microplate ×24(*1)
Ambient temp. range (*3)
+5℃ to +35℃
Shaking inverting function
The time and speed for inverting can be set up.
Heater 800 W
Cooling method Compressor 140 W
4 programs, 9 segments: Temp., Shaking speed, and time/per segment [Setting range: 00 h 00 min to 99 h 59 min], Wait function (*4)
Leakage/Overcurrent breaker, Fuse, Alarm of abnormalsample temp. (Set as desired), Detecting the door opening
and closing, Self-diagnosis function for sensor error, Motor
current limiter, Compressor overheating cut-off circuit (FL)

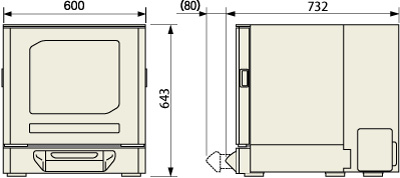

Dimensions (W × D × H)
600 × 732 × 643 mm
110 kg (Platform not included)
AC 100 V/12 A 〜240V
(*1)The temp. of defrost function that just starting is not included.
(*2)Shaking platform (Optional) is required to fix the plates. The capacity varies depending on the number of shaking platforms (Optional).
(*4)Shaking will start when reaching the preset temp.
•External output and 240 V specifications are also available by special order (FP only). Please contact
