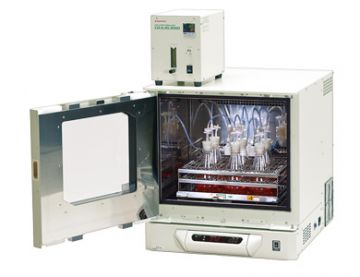

CO2 Bio incubator Shaker for Mammalian cells (CO2-BR-40LF)
Customized CO2 Bioshaker
Incubator shaker for Mammalian cells. Gas forced aeration results in increase efficiency of incubation and cell survivability. Customizable to fit with mnay different container and incubation scale.
Applications●Incubating floating or suspended cells (like CHO cells)
●Efficient antibody production
●Transfection or incubation of HEK 293 cells
●Incubation of microaerophilic or anaerobiotic organisms

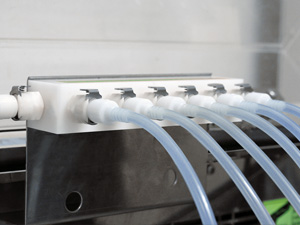

Original gas branching tube can distribute gas into each individual container
Carbon dioxide gas from the bottle is mixed with air at gas controller to be desired concentration. Mixed gas is then branched via inside gas branch unit into each container. Branch unit can distribute small and equal amount of gas into each container by its original construction.
Variation of gas supplyCombination with CO2 controller for the case of carbon dioxide only and multi gas controller for supplying carbon dioxide, nitrogen gas and oxygen. Supplying nitrogen gas only (there is a machine without bottle which condenses nitrogen from the air) or aseptic air supply for expression of baculovirus in insect cells are possible.
Establishing the system according to the scale is possible

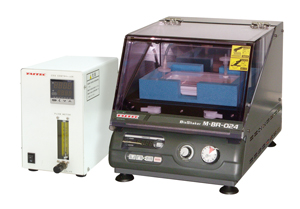

CO2-M·BR-024 + CO2 controller
Incubator itself has a variety of sizes from micro size to large size and you can pick up the one to fit your scale (Some are customized). Type of container and its number can be selected according to the scale of the machine (For container, please see the right column).
Inside the container can be maintained closed aseptic system

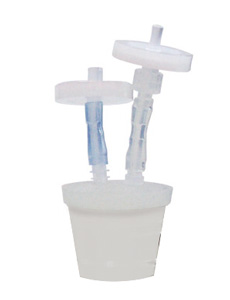

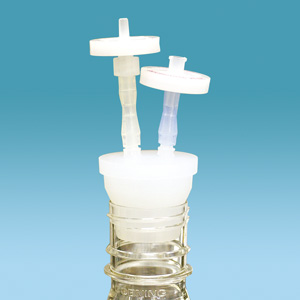

Inside the container can be kept clean because gas is provided through filters on important points. Container can be maintained aseptic even after removing gas providing hose because filter is on container side. It also enables easier come and go with clean bench.
Well, Erlenmeyer flask and culture bag can be chosen as container.You can select the container according to your purpose; for example, screening or still incubation using cell culture sheet or Petri dishes, suspended shaker incubation using Erlenmeyer flask (125ml – 3L, except 2L), mass incubation using cell culture bag (5 – 20L option). It will be custom made for some size and number though, please feel free to ask us.
|Temperature Range||+4ºC - +50ºC|
|Temp. Control Accuracy||±0.3 ºC - 1.0 ºC|
|Shaking Method||Switch rotating / reciprocal|
|Shaking Speed||20 - 200rpm|
|Amplitude||10 - 40mm (variable)|
|Gas Branching||Standard 6 branches|
(Up to 12 branches is available on customize)
|Surroundings temperature||+5 ºC - +35ºC|
|Door Style||Clear up hood|
|Dimensions||585 x 630 x 660Hmm|
|Power Supply||AC100V 9A|
|Standard Accessory||Air filter and gas providing hose 1set, Universal shaking rack x 1|

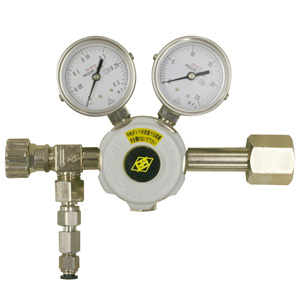

|(*) Clamp / stick sheet, flask cap, culture bag kit, syringe filter, culture bag-cell, gas controller and regulator are sold separately.|
|●This product is build-to-order manufacturing.|
